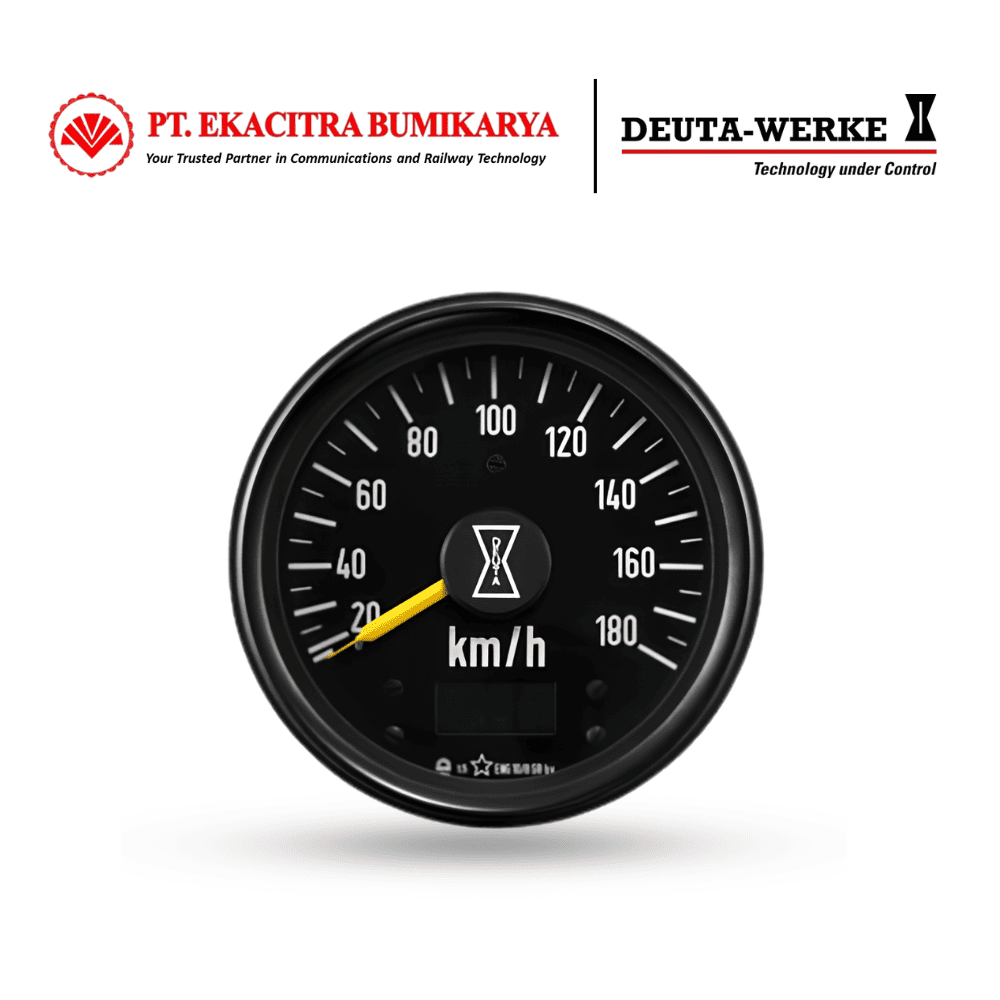

DEUTA Analogue Indicators
DEUTA analogue indicating units have proven their worth over decades as mounted panel instruments in a variety of settings. The range of products includes circular (ENG) and rectangular instruments (EQG) with 240° scales as well as many special devices such as indicators with stepper motors (ESG).
The complete range of built-in instruments is largely compliant with DIN 75501 with respect to mounting dimensions.
Analogue measurement devices with a variety of optional extras
The range of DEUTA indicators extends to special instruments such as dual measurement devices (EGS) with various optional extras. Circular dual indicators are available in 100 mm and 130 mm sizes, and rectangular dual indicators have dimensions of 96 x 96 mm. The line also includes a dual indicating unit with two measurement units arranged side by side (EGS6, 96 x 192 mm).
Modular design for customised indicators
Good to know: since DEUTA’s analogue indicating units are conceived as modules, they can be customised in many ways in order to meet client-specific requirements. Customisable elements include:
input variables (current/voltage, AC/DC)
lighting (bulb or LED)
colouring (spectrum, pointer, printing)
scale division
multiple measurement range
colouring of night lights
increased accuracy rating (up to 1 %)
modifications to measuring units
additional functions (counters)
Company logo
Mounted analogue panel meters from DEUTA comply with the following standards, amongst others:
EN 50155 (railway standard)
EN 61373 (vibration)
EN 60051 (accuracy)
EN 50121 (EMV)
