PINPROTEGIO 500 (RBUEP) - Pintsch
PINPROTEGIO 500 (RBUEP)

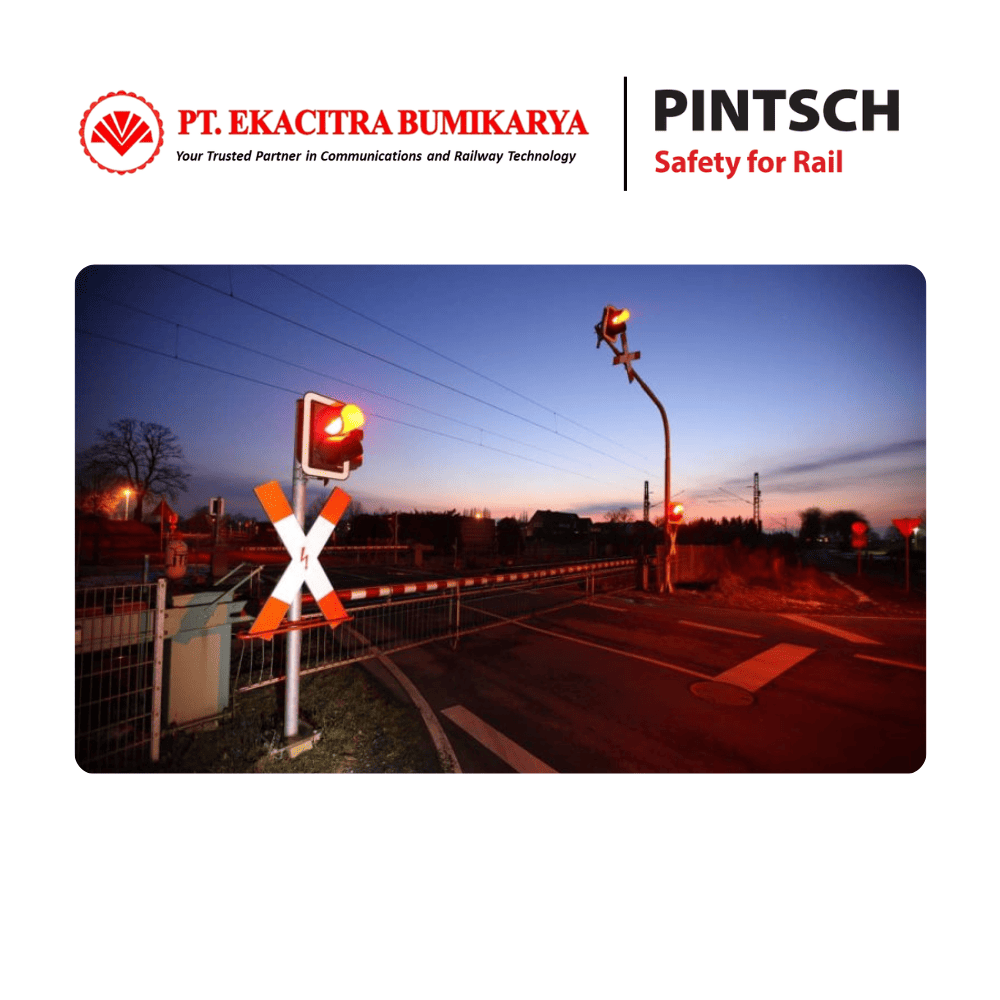

The PINTSCH type PINPROTEGIO 500 (RBUEP) computer controlled level crossing control system combines the advantages of our all electronic RBÜT system with the more flexible BÜP 93 local railway technology It can thus
be used both for DB Netz AG and non-federally owned railway systems. Thanks to its flexibility it is also eminently suitable for international use.
The RBUEP has been developed on the basis of the tried and proven SIRES safe (fault tolerant) computer system and meets the requirements of the highest system integrity level SIL 4 of the CENELEC standards.
The RBUEP can be used on routes featuring interlocked trackside signals and train driver indication signals and combinations of these. In addition, passenger and pedestrian safety systems and manually operated level
crossing barriers can be implemented using the RBUEP.
In maximum equipment configuration, the RBUEP can actuate and monitor up to 32 road side traffic lights 2 aspect, yellow/red), 16 barrier drives, 48 track mounted switching elements, 48 manual switching elements (single
channel) and/or 24 manual switching elements (two channel). The power supply is always designed with two channels (2 x 18 VDC).
The RBUEP is normally housed in a rectangular or square concrete hut, but can also be installed in a control cabinet if necessary.
All components of the RBUEP are approved by the German Federal Railway Authority (EBA).
Special switching cases and functions according to the level crossing regulations for non-federally owned railroads (BÜV NE) can also be implemented with RBUEP.
