PINPROTEGIO 300 (RBÜT)
The PINPROTEGIO 300 (RBÜT) is the first fully electronic level crossing protection technology from PINTSCH GmbH and has been successfully in use since 1998.
It can be used for all analog function monitoring of level crossing safety technology. The RBÜT supports trackside signals, main signals, remote monitoring, trackside signals with optimized activation and
combinations of these. It can also operate as passenger and pedestrian warning systems (level crossing with manually operated barriers and on call level crossing).
The proven secure computer system SIRES was developed for the RBÜT. The RBÜT fulfills system requirement level SIL 4 according to MÜ8004.
In maximum equipment configuration, the RBÜT can actuate and monitor up to 36 road side lights 2 aspect, yellow/red), 12 barrier actuation systems and 4 tracks 8 tracks in the case of monitoring mode Hp).

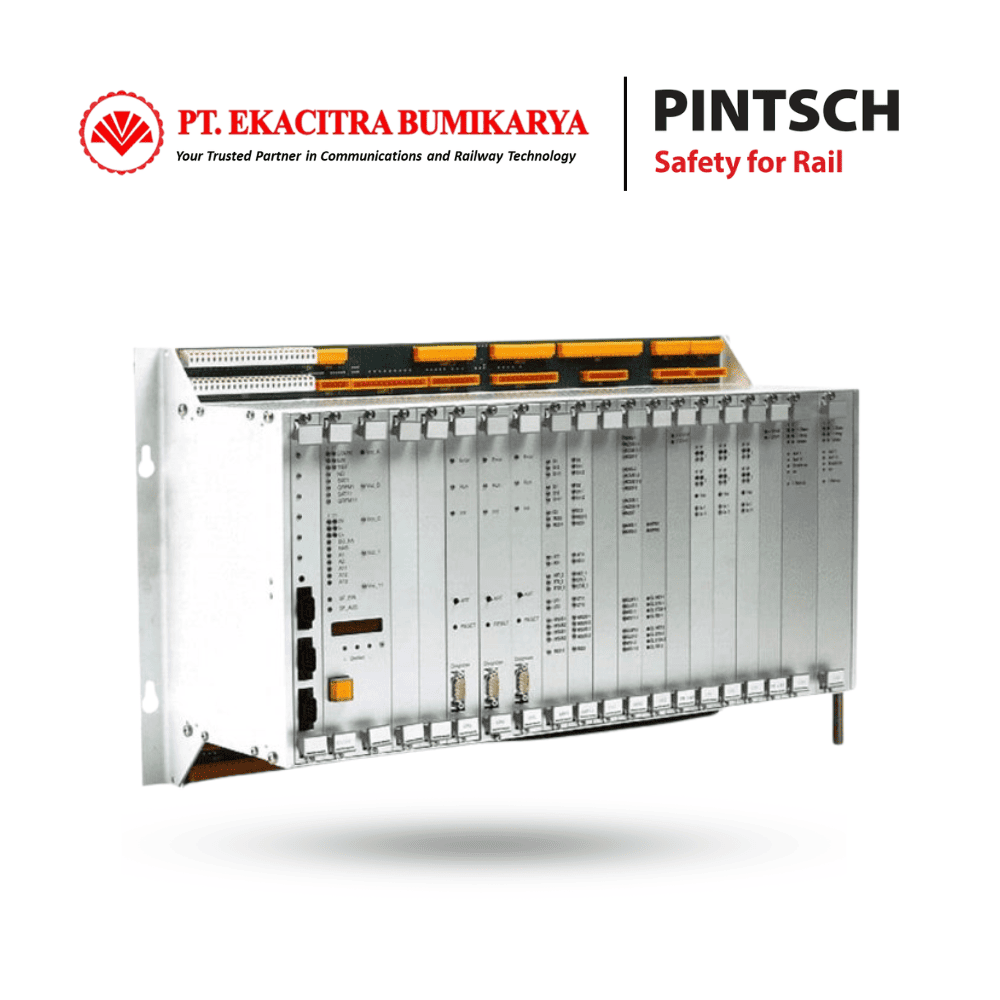

The RBÜT PCBs are installed in standardized mounting racks. The basic rack (see illustration below) can be equipped with PCBs for connection for up to 6 road side lights (road traffic signals) and 4 barrier actuation systems.
The RBÜT can be expanded for virtually any application by installing additional mounting racks with the corresponding peripheral modules A Lx acoustic module can also be connected to permit emission of acoustic signals.
As standard, the RBÜT is installed in a rectangular or square concrete switch house. If necessary, the installation in a control cabinet is possible.
All components of the RBÜT are approved by the German Federal Railway Authority (EBA).
